1 Introduction
Registration is a fundamental problem in biomedical imaging tasks. Multiple images, often reflecting a variety of contrasts, modalities, subjects, and underlying pathologies, are commonly acquired in many applications (Uludağ and Roebroeck, 2014). Registration seeks to spatially align these images in order to facilitate downstream analyses, like tracking longitudinal changes, studying disease progression, or analyzing population-level variability.

Registration can be broken down into different types. It may be performed within the same modality (unimodal) or across different modalities (multimodal). Pairwise registration performs registration on an image pair, while groupwise registration performs registration on multiple images at once (Guyader et al., 2018). To perform the registration, various families of spatial transformations can be used, including rigid, affine, and nonlinear transformations.
Different lines of research have been explored to solve the registration task. “Classical” (i.e. non-learning-based) registration methods solve an iterative optimization of a similarity metric over a space of transformations, with additional regularization terms that restrict the space of plausible transformations (Oliveira and Tavares, 2014; Sotiras et al., 2013). Much research is dedicated to developing good transformations, similarity metrics, and optimization strategies. While performant, these approaches are known to suffer from long run times, often requiring upwards of several minutes to register a pair of images. In addition, these approaches are known to perform poorly when the initial misalignment between images is large (e.g. 90 degrees of rotational misalignment).

Another line of work decomposes the registration problem into two steps. First, salient features (e.g. keypoints or contours) are extracted from images, and correspondences are established between the features of the image pair. Second, the transformation is derived which aligns these features and correspondences. In this work, we refer to methods that extract keypoints as salient features as “keypoint-based” registration. Largely, keypoint-based registration is advantageous in that the registration is relatively robust to initial misalignments, given good correspondences. In addition, these methods enjoy superior interpretability, because the user can interrogate the correspondences which are driving the registration. However, finding keypoints and establishing correspondences is a difficult task and is a subject of much research (Lowe, 2004; Tang et al., 2023, 2019).
More recently, deep learning-based strategies have emerged which leverage large datasets of images to train a neural network to perform the registration task. These strategies use convolutional neural network (CNN) or transformer-based architectures (Ma et al., 2022; Chen et al., 2021; Khan et al., 2021) that either output transformation parameters (e.g. rigid, affine or spline) (Lee et al., 2019a; de Vos et al., 2019) or a dense deformation field (Balakrishnan et al., 2019; Hoffmann et al., 2022) which aligns an image pair. These strategies are effective and are able to perform fast inference via efficient feed-forward passes. However, they often fail when the initial misalignment is large and are usually less robust than their classical counterparts.
Recently, the KeyMorph framework proposed to combine the benefits of keypoint-based registration with deep learning using neural networks to automatically detect corresponding keypoints (Yu et al., 2022; Wang et al., 2023). Corresponding keypoints can then be used to compute the optimal transformation in closed-form, where the keypoints themselves are learned by a neural network. Thus, KeyMorph may be seen as possessing all the benefits of keypoint-based registration, including robustness to large misalignments and better interpretability, while retaining the fast inference times of deep learning-based methods. In addition, different transformation can be used according to user specifications, thereby enabling human controllability of the registration process.
In this work, we extend the KeyMorph framework into a general-purpose tool for brain MRI registration. Although the literature on deep-learning-based registration methods has been widely explored and many tools exist with support for brain MRIs (Avants et al., 2008b; Konstantinos Ntatsis et al., 2023; Hoffmann et al., 2022), most works focus on cross-subject pairwise registration on healthy subjects with skull-stripped images. Groupwise registration and support for non-skull-stripped and diseased subjects is often ignored, or is prohibitively slow or memory-intensive (Konstantinos Ntatsis et al., 2023). Often, the tools that do exist require time-consuming preprocessing steps like skullstripping and pre-affine registration (Balakrishnan et al., 2019; Hoffmann et al., 2022). In short, there is a lack of software tools for brain MRIs which is capable of supporting registration across a wide swath of use cases, including healthy and diseased subjects, pairwise/longitudinal/groupwise registration, and minimal assumptions on preprocessing (like skullstripping).
We refer to our proposed tool as BrainMorph. BrainMorph is a tool built on the KeyMorph framework that is trained on a massive dataset of over 100,000 volumes consisting of both skull-stripped and non-skull-stripped data of diseased and normal subjects in a variety of MRI modalities. Our tool supports rigid, affine, and nonlinear registration. In addition to pairwise registration, we introduce a novel and memory-efficient approach to groupwise registration and demonstrate the superiority and scalability of our approach in population-level and longitudinal settings. All code and models are available at:
https://github.com/alanqrwang/brainmorph.
This work builds on previous works on KeyMorph (Yu et al., 2022; Wang et al., 2023) in the following ways:
- 1.
We scale up training of the KeyMorph framework on a massive dataset of over 100,000 volumes at 1mm isotropic resolution, enabling our resulting model to be robust to full-resolution skull-stripped and non-skull-stripped data, a variety of MRI modalities, and diseased and normal subjects.
- 2.
We introduce a groupwise registration algorithm operating on the learned keypoints that is scalable and memory efficient.
- 3.
We provide code and all model variants such that our models can be used as a tool for the research community.
2 Background
Classical Methods. Pairwise iterative, optimization-based approaches have been extensively studied in medical image registration (Hill et al., 2001; Oliveira and Tavares, 2014). These methods employ a variety of similarity functions, types of deformation, transformation constraints or regularization strategies, and optimization techniques. Intensity-based similarity criteria are most often used, such as mean-squared error (MSE) or normalized cross correlation for registering images of the same modality (Avants et al., 2009, 2008a; Hermosillo et al., 2002). For registering image pairs from different modalities, statistical measures like mutual information or contrast-invariant features like MIND are popular (Heinrich et al., 2012; Hermosillo et al., 2002; Hoffmann et al., 2021; Mattes et al., 2003; Viola and Wells III, 1997).
Keypoint-based Methods. Another registration paradigm first detects features or keypoints in the images, and then establishes their correspondence. This approach often involves handcrafted features (Tuytelaars and Mikolajczyk, 2008), features extracted from curvature of contours (Rosenfeld and Thurston, 1971), image intensity (Förstner and Gülch, 1987; Harris et al., 1988), color information (Montesinos et al., 1998; Van de Weijer et al., 2005), or segmented regions (Matas et al., 2004; Wachinger et al., 2018). Features can be also obtained so that they are invariant to viewpoints (Bay et al., 2006; Brown et al., 2005; Lowe, 2004; Toews et al., 2013a). These algorithms then optimize similarity functions based on these features over the space of transformations (Chui and Rangarajan, 2003; Hill et al., 2001). This strategy is sensitive to the quality of the keypoints and often suffer in the presence of substantial contrast and/or color variation (Verdie et al., 2015).
Deep Learning-based Methods. In learning-based image registration, supervision can be provided through ground-truth transformations, either synthesized or computed by classical methods (Cao et al., 2018; Dosovitskiy et al., 2015; Eppenhof and Pluim, 2018; Lee et al., 2019b; Uzunova et al., 2017; Yang et al., 2017). Unsupervised strategies use loss functions similar to those employed in classical methods (Balakrishnan et al., 2019; Dalca et al., 2019; de Vos et al., 2019; Fan et al., 2018; Krebs et al., 2019; Qin et al., 2019; Wu et al., 2015; Hoopes et al., 2021). Weakly supervised models employ (additional) landmarks or labels to guide training (Balakrishnan et al., 2019; Fan et al., 2019; Hu et al., 2018a, b).
Recent learning-based methods compute image features or keypoints (Ma et al., 2021; Moyer et al., 2021) that can be used for image recognition, retrieval, tracking, or registration. Learning useful features or keypoints can be done with supervision (Verdie et al., 2015; Yi et al., 2016, 2018), self-supervision (DeTone et al., 2018; Liu et al., 2021) or without supervision (Barroso-Laguna et al., 2019; Lenc and Vedaldi, 2016; Ono et al., 2018). Finding correspondences between pairs of images usually involves identifying the learned features which are most similar between the pair. In contrast, our method uses a single network which extract/generates corresponding keypoints directly from both the moving and fixed image. The keypoints between the moving and fixed image are guaranteed to be in correspondence, since one network extracts keypoints from both images. We optimize these corresponding keypoints directly for the registration task (and not using any intermediate keypoint supervision).
Model | CPU Time, pre-processed | GPU Time, pre-processed | CPU Time, raw | GPU Time, raw |
---|---|---|---|---|
ANTs, Rigid | 101.382.33 | - | 143.382.33 | - |
ANTs, Affine | 110.452.94 | - | 142.452.94 | - |
ANTs, Syn | 216.033.14 | - | 248.033.14 | - |
BrainMorph, Rigid | 109.841.80 | 1.050.29 | 108.271.82 | 1.050.25 |
BrainMorph, Affine | 109.631.84 | 1.040.36 | 110.311.90 | 1.050.32 |
BrainMorph, TPS | 180.141.99 | 1.240.30 | 180.401.91 | 1.250.31 |
Learning-based methods for multi-modal registration are of great practical utility and often-studied in the literature. Most works require, in addition to the moving and fixed image, a corresponding image in a standard space which can be compared and which drives the alignment, usually in the form of segmentations. (Zhang et al., 2022) address multi-modal retinal images and handle multi-modality by transforming each image to a standard grayscale image via vessel segmentation. A standard feature detection and description procedure is used to find correspondences from these standard images. Other works (Song et al., 2022) rely on segmentations from ultrasound and magnetic resonance images to align them. Obtaining these segmentations may be costly, add additional computational complexity to the registration procedure, or be specific to the anatomies/modalities in question. In contrast, our method can be applied generally to any registration problem. In addition, we present a variant of our model which only relies on the images themselves during training. In our experiments, we find that this variant outperforms state-of-the-art baselines while also performing comparably to a variant of our model which leverages segmentations.
3 BrainMorph
Our tool, BrainMorph, is based on the previously published KeyMorph framework and we refer the reader to prior papers for more details (Yu et al., 2022; Wang et al., 2023). Let be a moving (source) and fixed (target) image111Although we consider 3D volumes in this work, BrainMorph is agnostic to the number of dimensions. The terms “image” and “volume” are used interchangeably. pair, possibly of different contrasts or modalities. Additionally, we denote by a parametric coordinate transformation with parameters , such as those discussed in B. The goal is to find the optimal transformation such that the registered image aligns with some fixed image , where denotes the spatial transformation of an image.
BrainMorph works by detecting keypoints from any given image. In this work, . The keypoints are detected by a neural network . Since a single detects keypoints for any image and the detected keypoints are used to optimize a registration objective (see Section 3.2), the keypoints for any arbitrary image pair are in correspondence. Given corresponding keypoint sets and , the optimal transformation can be derived using a keypoint solver, which outputs the optimal transformation parameters as a function of the keypoints: . Here, we optionally include as arguments a vector of weights which weight the correspondences, such that lower weights lead to a lower contribution to the overall alignment. Further details are given in Section 4.3.

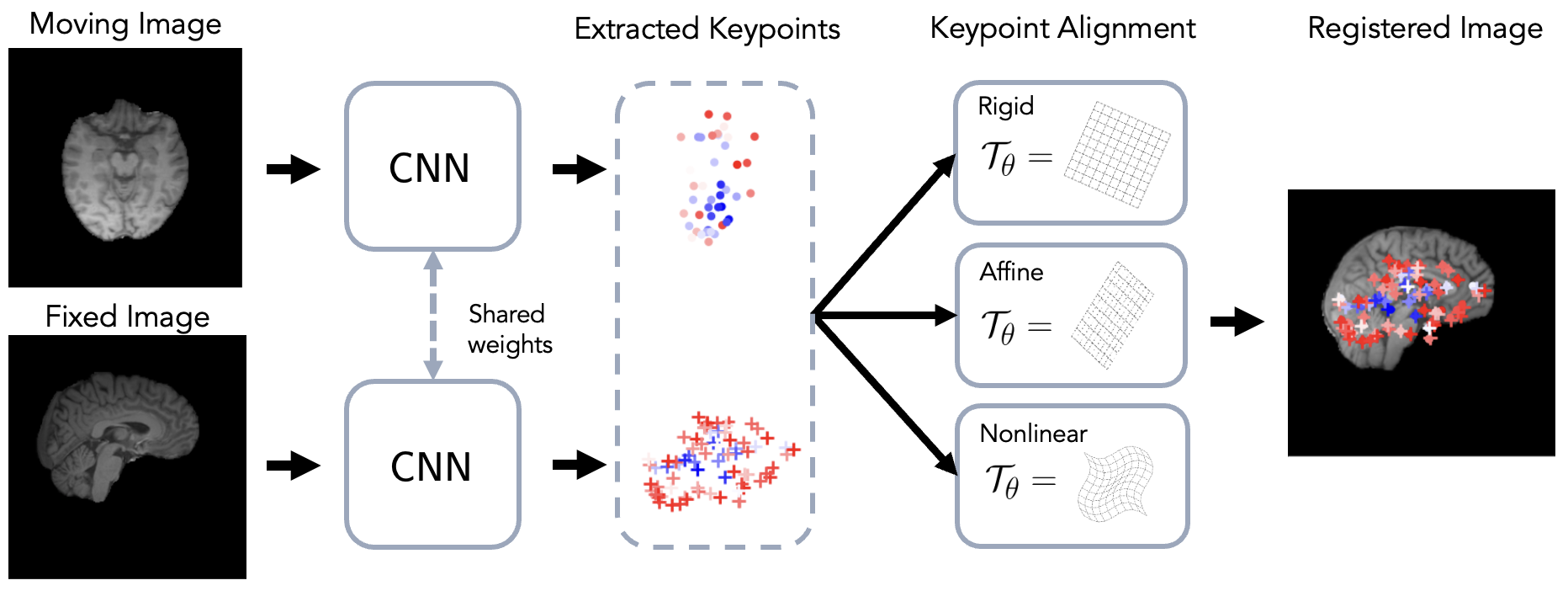

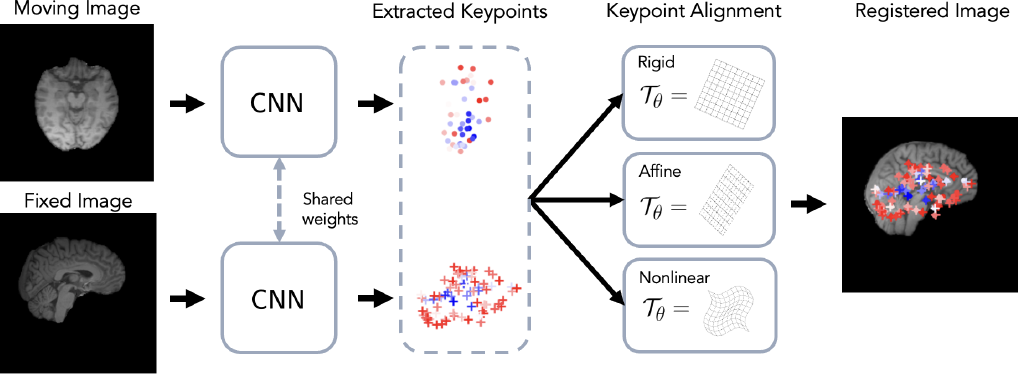

Fig. 1 depicts a graphical overview of BrainMorph. Note this formulation unlocks the benefits of keypoint-based registration, including robustness to large misalignments and interpretability (as compared to other learning-based methods) via visualizing the keypoints. Moreover, this formulation enables controllability in the sense that different transformations can be used to align the keypoints. In particular, during training, this allows for heterogeneity in training, such that the model can be robust to a wide variety of transformation types. At test-time, one can generate a dense set of registrations; the controllable nature of this framework enables the user to select the preferred registration.
3.1 Keypoint Detection Network
BrainMorph can leverage any deep learning-based keypoint detector (Ma et al., 2021; DeTone et al., 2018; Barroso-Laguna et al., 2019). In this work, we use a UNet-style architecture which takes in a single channel image and outputs feature maps. We are interested in preserving translation equivariance; to this end, we leverage a center-of-mass (CoM) layer (Ma et al., 2020; Sofka et al., 2017) as the final layer, which computes the center-of-mass for each of the activation maps. This specialized layer is (approximately) translationally-equivariant and enables precise localization. Since the CoM layer expects positive values at every grid location, we insert a ReLU activation before the CoM layer.
3.2 Training
Training BrainMorph involves optimizing the learnable parameters within the CNN for pairwise registration. During training, we randomly sample pairs of moving and fixed images, and the general objective is:
(1) |
where measures image similarity between its two inputs. Weights for keypoints correspondences are found as follows. First, we compute the energy (i.e. the aggregated sum) of each of the activation maps for both the fixed and moving image. Then, we multiply the corresponding energies, and compute the softmax of the energies to arrive at normalized weights (Moyer et al., 2021).
In this work, we choose transformations whose optimal parameters can be solved in a closed-form and differentiable manner so that can be trained in an end-to-end fashion. Thus, the neural network is incentivized to detect anatomically-consistent keypoints from a given image, such that a good registration can be achieved. Note that we do not rely on any ground truth keypoints as supervision.
The BrainMorph framework enables flexibility in training depending on the choice of the loss function and the transformation used. can be any similarity function and can vary during training depending on the image pairs. In this work, we use MSE or Dice loss, depending on the current image pair. The closed-form optimal solution can depend on a hyperparameter , such as in TPS, which can be set to a constant or sampled from a distribution during training. More details on the training details we used in this work are presented in Section 4.2. Once the model is trained, it can be used for both pairwise and groupwise registration during inference time, as described below.
3.3 Pairwise Registration
Pairwise follows straightforwardly from the training setup. Given a fixed image and moving image , BrainMorph performs pairwise registration as follows:
(2) |
Note that at test time, we can use any transformation (e.g, rigid, affine or TPS with any hyperparameter value), which would yield a different alignment based on the same keypoints.
3.4 Groupwise Registration
Groupwise registration methods try to mitigate uncertainties associated with any one image by simultaneously registering all images in a population. This incorporates all image information in the registration process and eliminates bias towards a chosen reference frame (Toews et al., 2013b; Agier et al., 2020).
We propose a novel algorithm for groupwise registration based on detected keypoints. In the groupwise setting, we have subjects to align; thus we are solving for the optimal transformation as well as the optimal average space simultaneously. To achieve this with keypoints per subject, we optimize for the average space and the optimal transformations in an iterative, coordinate-ascent strategy by alternating the following two steps:
- 1.
Given points at the current iteration , compute the average keypoints
- 2.
Compute new points by registering all points to
After iterations, the algorithm converges to the average space , and the final registration for the ’th image is found by transforming the image according to the transformation that aligns points to .
Note that this algorithm only relies on keypoints. Thus, it is computationally efficient since keypoints can be precomputed and done serially, whereas other works must fit all images in memory at once. In our experiments, we demonstrate the scalability of our approach by registering more than 100 volumes simultaneously.
4 Materials and Methods
4.1 Dataset
We train BrainMorph on a massive dataset of over 100,000 images from nearly 16,000 unique subjects. All datasets are gathered from publicly-available brain studies, datasets, and challenges. The full list of datasets is given in the Appendix. Our tool requires the following two widely-used pre-processing steps for all image inputs: resampling to 1mm isotropic, cropping/padding to 256x256x256. Min-max rescaling to [0, 1] is performed as the first layer in the network, and thus we do not consider it a pre-processing step.
For training, we reorient all brains to MNI space222During training, we apply random affine transformations as an augmentation strategy.. For purposes of obtaining training data of both non-skullstripped and skullstripped data, we perform skull-stripping on all images with HD-BET (Isensee et al., 2019), a robust deep learning-based skull-stripping tool. For images without extreme lesions, we further generate segmentations with SynthSeg (Billot et al., 2020, 2023a), which produces parcellations of 33 brain regions. We do not perform segmentation on images with extreme lesions. See the Appendix for the full list of brain regions. Datasets used for training and testing are non-overlapping, to ensure no data leakage occurs. Further details on evaluation datasets are provided in Sec. 5.1 and the Appendix.
4.2 Training Details
We are interested in learning foundational keypoints for the end goal of general-purpose brain registration. Thus, the keypoints should be optimized such that they are robust to a variety of brain MRI modalities and transformation types (rigid, affine, and nonlinear). Note that, BrainMorph is amenable to a variety of training strategies (pairwise sampling, loss function, and transformation type). We would like the network to be able to handle uni-modal, multi-modal, and longitudinal image pairs, with transform types including rigid, affine, and TPS. To do so, we perform heterogeneous training with different tasks for a single foundation model, where the task is randomly sampled in each mini-batch.
During training, we use two loss types: Dice of segmentation labels and mean-squared-error (MSE) of pixel values. We use three transformation types: rigid, affine, and TPS (nonlinear). TPS has a hyperparameter which controls the degree of nonlinearity.
Image pair | Transform type | Loss |
---|---|---|
Normal | TPS | Dice |
Skullstripped, lesion | Affine | MSE |
Skullstripped, longitudinal | Rigid | MSE |
In general, we are constrained by the following rules.
- 1.
To use MSE loss, we must sample skull-stripped same-modality pairs.
- 2.
- 3.
For longitudinal image pairs, we use rigid transformation to simulate realistic downstream usage.
- 4.
For image pairs with lesions, we use a restrictive affine transformation, as TPS will not guarantee bijective correspondence between images.
Table 2 summarizes the training strategy used, which we choose according to the above constraints. At every training iteration, we sample uniformly across the three image pair types. Thus, the model is trained to optimize the registration performance across all three image tasks with equal weighting.
We experimented with = 128, 256, and 512 keypoints, and perform a thorough analysis of the relationship between number of keypoints and registration performance in Section 6.2.2. Weights are applied for all models during training and evaluation. For TPS transformations, we sample during training from a log-uniform distribution . During testing, we can choose a value that lies in the support of this distribution. In addition, during training, in each mini-batch, we compute TPS on 32 keypoints chosen uniformly at random (Donato and Belongie, 2002). This is because TPS has a high memory requirement due to computing pairwise distances between every keypoint and grid location. Note that at test-time, we compute TPS on the full set of keypoints, and compute pairwise distances in a chunk-wise, iterative fashion to bypass this memory requirement. When minimizing Dice loss, we sample 14 regions uniformly at random for computational purposes.
For all models, we used a batch size of 1 image pair and the Adam optimizer (Kingma and Ba, 2017) for training. We train for a total of 160K gradient steps. The following uniformly-sampled augmentations were applied to the moving image across all dimensions during training: rotations , translations voxels, scaling factor , and shear . All training and GPU testing was performed on a machine equipped with an AMD EPYC 7513 32-Core processor and an Nvidia A100 GPU. CPU testing was performed on a machine equipped with an Intel Xeon Gold 6330 CPU @ 2.00GHz. All BrainMorph models are implemented in PyTorch.
4.3 Model Details
# parameters | # downsampling | model size | |
---|---|---|---|
BrainMorph-S | 4M | 4 | 48MB |
BrainMorph-M | 16M | 5 | 196MB |
BrainMorph-L | 66M | 6 | 791MB |
Our architecture backbone consists of a truncated UNet, which is identical to a standard UNet except all layers which operate at the original resolution (e.g. after the last upsampling layer) are removed (Ulyanov et al., 2016). All truncated UNets we use have two convolutional blocks at each resolution. Thus, the final center-of-mass layer extracts keypoints at half-resolution. This enables us to train deeper networks with a bottleneck operating on a very coarse grid, which we empirically find leads to better performance. In particular, we report results on three variants of the truncated UNet, which differ in the capacity as a function of the number of downsampling layers. We refer to them as BrainMorph-S, BrainMorph-M, and BrainMorph-L, and summarize them in Table 3. All references to BrainMorph are BrainMorph-L models, unless otherwise noted.
4.4 Self-supervised Pretraining
We employ the following self-supervised pre-training strategy to aid in keypoint detector initialization, essentially encouraging equivariance of the keypoint extractor with respect to affine image deformations. Note that past works have leveraged equivariant networks (Billot et al., 2023b); however, we find these networks unstable to train and lack the capacity to capture variability present in our large datasets. Using a single subject, we pick a random set of keypoints by sampling uniformly over the image coordinate grid. During pre-training, we apply random affine transformations to the input image as well as , and minimize the following keypoint loss:
(3) |
Here, is an affine transformation drawn from a uniform distribution over the parameter space.
We train for a total of 480K gradient steps. We use the same augmentation strategy as training, except that we linearly increase the degree of augmentation such that maximum augmentation is reached after 160K gradient steps. We use the same dataset for training and pretraining. Note that we assume that all the training data are in the same orientation and roughly in the center of the image in order for the sampled keypoints to apply well to all images in the dataset.


5 Experimental Setup


5.1 Evaluation Datasets
We use the following datasets for evaluation of all models. Note that these datasets are not included in training.
- 1.
For healthy pairwise and cross-subject groupwise experiments, we evaluate on the IXI brain MRI dataset333https://brain-development.org/ixi-dataset/. Each subject has T1, T2, and PD-weighted 3D MRI scans in spatial alignment, so we can use this dataset for both unimodal and multimodal registration experiments. We evaluate on 100 subjects.
- 2.
For diseased subjects with lesions, we evaluate on the test split of the RSNA-ASNR-MICCAI BraTS dataset (to ensure no dataset contamination), which consists of adult brains with gliomas acquired with T1, T1gd, T2, and FLAIR sequences444https://www.rsna.org/rsnai/ai-image-challenge/brain-tumor-ai-challenge-2021. We also evaluate on a dataset of brains with multiple sclerosis (Muslim et al., 2022), which consists of 60 MS patients with T1, T2, and FLAIR sequences.
- 3.
For longitudinal experiments, we evaluate on the OASIS2 dataset, which consists of longitudinal MRI brains in nondemented and demented older adults555https://www.oasis-brains.org/. The number of timepoints per subject ranges between 2 and 10.
For all evaluation datasets, we perform resampling to 1mm isotropic and cropping/padding to image size, which is standard across all baselines.
We use a pre-trained and validated SynthSeg model (Billot et al., 2020) to automatically delineate 23 regions of interest (ROIs)666ROIs were pallidum, amygdala, caudate, cerebral cortex, hippocampus, thalamus, putamen, white matter, cerebellar cortex, ventricle, cerebral white matter, and brainstem.. Furthermore, all performance evaluations were based on examining the overlap of ROIs in the test images.

5.2 Test-time Performance Evaluation
For pairwise experiments, we use each test subject as a moving volume , paired with another random test subject treated as a fixed volume . We simulate different degrees of misalignment by transforming using rotation. Rotation is applied to all 3 axes at the specified degree. We use the predicted transformation to resample the moved segmentation labels on the fixed image grid. Unimodal/multimodal registration is an independent variable in our experiments. We experiment with rigid, affine, and nonlinear registration types for all models and baselines.
For longitudinal experiments, we perform groupwise registration on all available timepoints, and restrict to rigid transformations only. For cross-subject groupwise experiments, we sample different subject, same-modality images and experiment with varying group sizes in [4, 8, 16, 32, 64, 128]. We restrict to nonlinear transformations only. Similar to pairwise experiments, we simulate different degrees of misalignment by transforming all images using rotation applied to all 3 axes at the specified degree.
5.3 Metrics

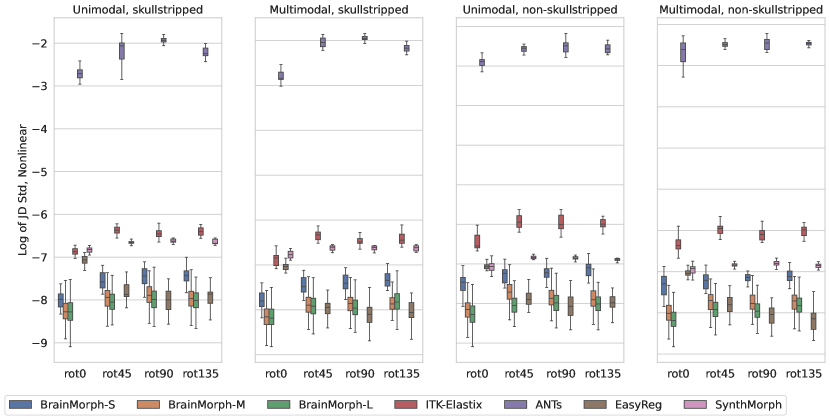

For all experiments, we quantify alignment quality and properties of the transformation using Dice overlap score and Hausdorff distance (HD).


5.4 Baselines
As the goal of this work is to develop a general-purpose tool for brain MRI registration, we wish to compare our proposed model against state-of-the-art and easily-accessible tools for this purpose. Our intended users are practitioners who desire a simple, easy-to-use tool that performs registration with minimal pre-processing or setup. Thus, we adhere to all instructions required by baselines (including intensity normalization, initial robust registration, etc.), and do not assume that data are pre-processed. Note that since skullstripping vs. non-skullstripping is an independent variable in our experiments, we do not perform any skullstripping as part of any baseline’s preprocessing requirements.
- •
ITK-Elastix is a widely-used software package which supports pairwise and groupwise registration (Konstantinos Ntatsis et al., 2023). Rigid, affine, and bspline alignments are supported. For all registrations, we perform a multi-resolution pyramid strategy at 4 resolutions in order to improve the capture range and robustness of the registration. The method uses a 4D (3D+time) free-form B-spline deformation model and a similarity metric that minimizes variance of intensities under the constraint that the average deformation over images is zero. This constraint defines a true mean frame of reference that lie in the center of the population without having to calculate it explicitly.777https://readthedocs.org/projects/simpleelastix/downloads/pdf/latest/
- •
Advanced Normalizing Tools (ANTs) is a widely-used software package which is state-of-the-art for medical image registration (Avants et al., 2009). We use the “Rigid” and “Affine” implementation for the rigid and affine model, respectively. The volumes are registered successively at three different resolutions: 0.25x, 0.5x and finally at full resolution. At 0.25x and 0.5x resolution, Gaussian smoothing with of two and one voxels is applied, respectively. For non-linear registration, we use “SyN”, which performs Symmetric Normalization (Avants et al., 2008b). Finally, we used mutual information as the similarity metric for all models, which is suitable for registering images with different contrasts.
- •
SynthMorph is a deep learning-based registration method which achieves agnosticism to modality/contrast by leveraging a generative strategy for synthesizing diverse images, thereby supporting multi-modal registration (Hoffmann et al., 2022). SynthMorph accepts as input the moving and fixed images and outputs a dense deformation field instead of global affine parameters, which is a common strategy in many well-performing registration models (Balakrishnan et al., 2019).

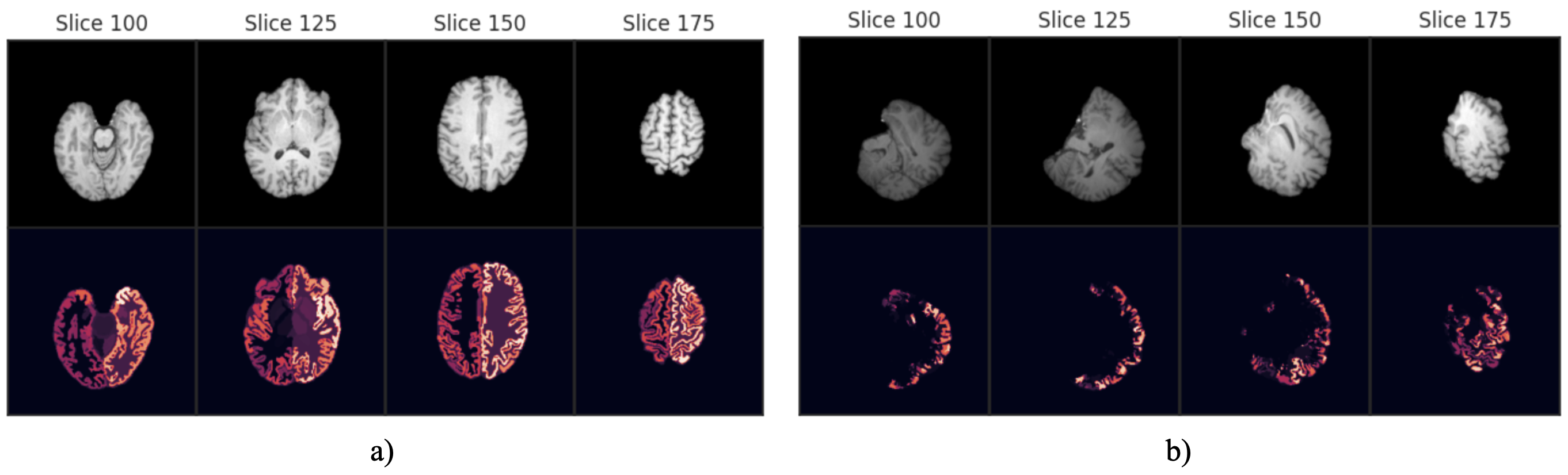

Note that an important pre-processing step required by SynthMorph is an affine-registration step to a pre-defined reference space (Reuter et al., 2010; Fischl, 2012). Thus, this limits the flexibility of SynthMorph in the sense that all registrations are performed in this reference space. In contrast, BrainMorph enables the user to define any arbitrary reference space via the fixed image. In addition, this requirement increases pre-processing time. In our experiments, we first affine register every image using ANTs (see above). SynthMorph models are implemented in Keras/Tensorflow.
- •
EasyReg is a deep learning-based registration tool that supports both affine and nonlinear registration in a single pipeline (Iglesias, 2023). EasyReg is designed to be symmetric, diffeomorphic, agnostic to MRI modality and resolution (in a manner similar to SynthMorph), and does not require any preprocessing or parameter tuning.
The nonlinear registration part of EasyReg is perhaps most similar to SynthMorph, where the fixed and moving image are accepted as input to a network and the output is a dense deformation field. Unlike SynthMorph, EasyReg does not require an affine-registration step and instead performs it as an additional step in its registration pipeline. In particular, EasyReg uses a pretrained segmentation model to generate a parcellation of the brain, and keypoints are derived by computing the centroids of all 97 ROIs of the parcellation. These 97 keypoints are extracted for both the moving and fixed image, and the affine transformation is solved that aligns these keypoints corresponding to Eqn. (8). Note that this affine step crucially depends on the performance and robustness of the segmentation model.
6 Results
6.1 Main Results
6.1.1 Pairwise Registration

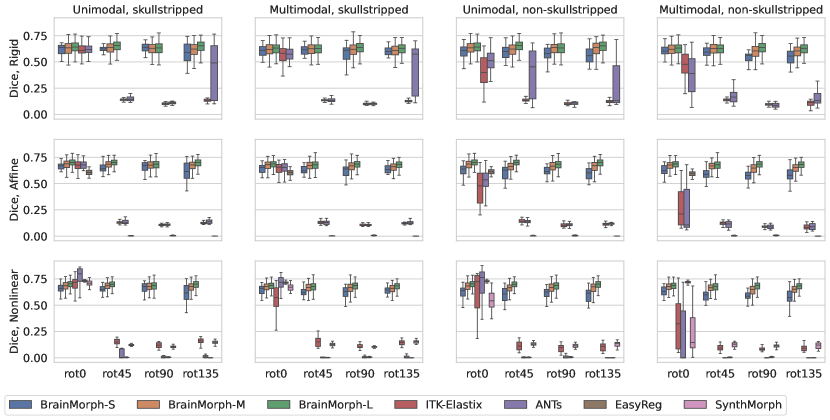

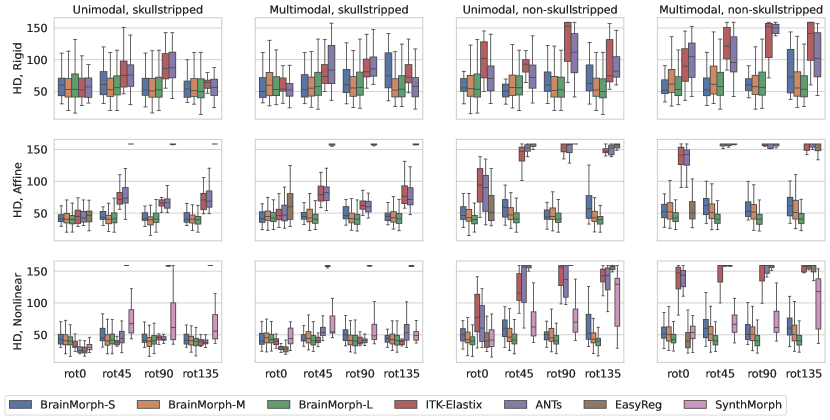

We analyze the performance of baselines and our proposed BrainMorph under conditions of large initial misalignments in terms of rotation. Figs. 3 and 4 plot overall Dice and HD across rotation angle of the moving image for baselines and BrainMorph. Each panel depicts rigid, affine, and nonlinear registrations, respectively. Each separate figure varies different combinations of unimodal vs. multimodal, skullstripped and non-skullstripped.

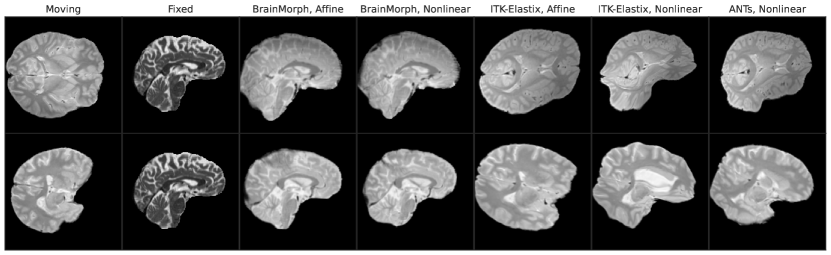

Generally, BrainMorph performs well across all rotation angles, modalities, and (non-)skullstripped. BrainMorph-L outperforms all baselines for rigid and affine transformations across all rotation angles. However, for the case of nonlinear unimodal and multimodal skullstripped registration at small initial misalignment (e.g. 0 degrees of rotation, (bottom left panels) ANTs, SynthMorph, and EasyReg outperform BrainMorph. We attribute this to the fact that TPS in 3D is likely not sufficient to align cortical geometry and therefore the model does not seem to identify cortical keypoints. This leads to relatively worse alignment in cortical regions, which baselines (which do not have the TPS assumption) can align better.
We find that all baseline models suffer substantially as the rotation angle increases, across all transformation types. For classical methods (ITK-Elastix and ANTs), the models fail to find correspondences when they are far apart on the spatial grid. For SynthMorph, the performance drop is likely due to not affine aligning the image pair, which is a requirement for SynthMorph but an added step in the pipeline. EasyReg accounts for this by performing an initial affine alignment, but the performance drop is due to the failure of the pretrained segmentation model (used to extract ROI centroids to be used as keypoints) to segment brains which are significantly rotated, leading to a poor initial affine alignment (see Appendix).
We compare the computational time across different models in Table 1. Some representative examples for all models are provided in Fig. 5 for qualitative evaluation. Overall, BrainMorph outperforms other baselines at high degrees of initial misalignment, and furthermore performs comparably or often better (at large misalignments) than the state-of-the-art ANTs registration, while requiring substantially less runtime.
6.1.2 Groupwise Registration

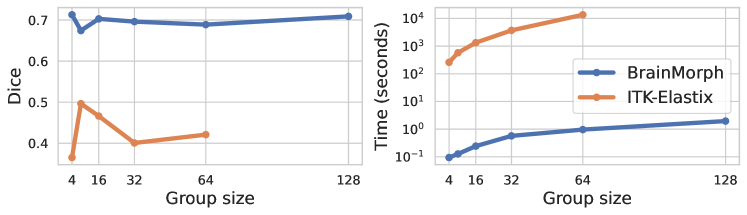

Fig. 7 depicts groupwise performance and timings for BrainMorph vs. ITK-Elastix. We use B-spline for ITK-Elastix and TPS with for BrainMorph. We find that BrainMorph has much better and more stable performance across all group sizes we tested. Note that on our CPU, ITK-Elastix failed on 128 subjects. BrainMorph has an advantage in that keypoints can be precomputed in a serial fashion on a GPU, thus enabling much better scaling to large group sizes.

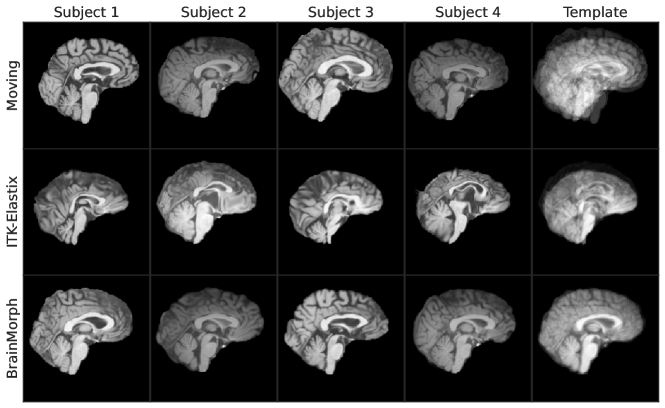

Fig. 6 depicts a representative example of groupwise registration with 4 subjects. The first row depicts the initial unaligned images, and the second and third row show the results of ITK-Elastix and BrainMorph, respectively. The last column depicts the average template brain for all 4 subjects. We find that BrainMorph groupwise registration to be substantially better, as evidenced by the sharp lines in the template brain. On a GPU, BrainMorph is also faster than ITK-Elastix by nearly 4 orders of magnitude.
6.1.3 Longitudinal Registration

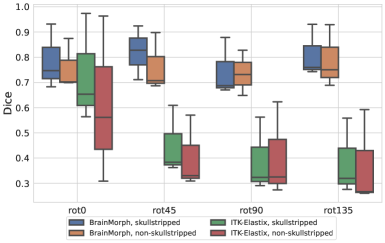

Fig 8(a) shows boxplots for longitudinal registration performance across rotation angles for skull-stripped and non-skull-stripped, respectively. We find that across all rotation angles and with and without skullstripping, BrainMorph outperforms ITK-Elastix.
6.1.4 Registration with Lesions

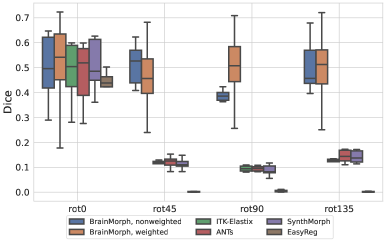

Fig 8(b) shows a boxplot of performance of all models on lesion data. We observe that the weighted variant of BrainMorph outperforms all baselines across most rotation angles and is generally has more stable performance. In particular, weighted BrainMorph tends to outperform the unweighted variant of BrainMorph at 45 degrees of rotation and above.
Note that we use Dice performance as a proxy for registration quality, even though the SynthSeg-generated segmentations are not guaranteed to be robust to diseased patients.
6.2 Keypoint Analysis
6.2.1 Visualizing keypoints

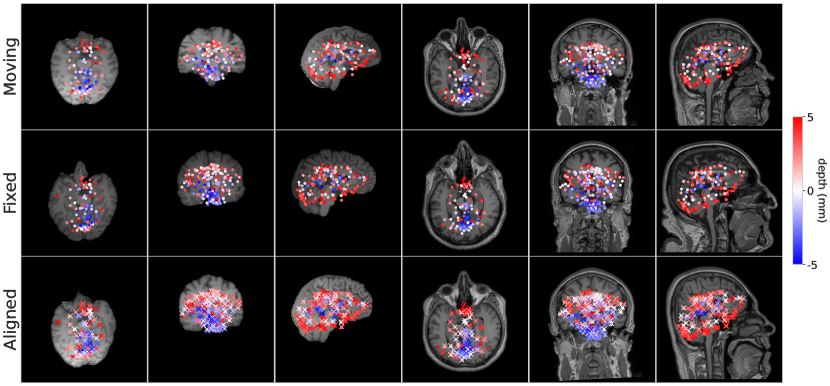

In contrast to existing models that compute the transformation parameters using a “black-box” neural network, one can investigate the keypoints that BrainMorph learns to drive the alignment. Fig. 2 shows the keypoints for a moving and fixed subject pair via mid-slices for sagittal, axial, and coronal views. The first three columns depict keypoints extracted from skull-stripped images, and the last three columns depict keypoints extracted from non-skull-stripped images. The color of the keypoints represents depth with respect to the mid-slice. The “Aligned” slices show both warped (dots) and fixed (crosses) points.
Note that keypoint locations are trained end-to-end without explicit annotations. We observe that keypoint locations are generally in sub-cortical regions, where anatomical variability is relatively low across subjects as compared to cortical regions.
6.2.2 Number of Keypoints

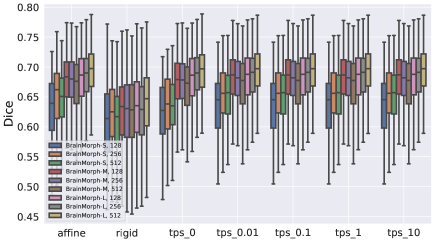

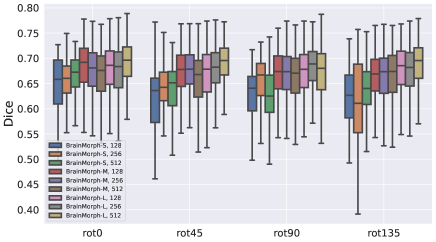

As an ablation, we examine the effect of the number of keypoints used for alignment across different transformations. We trained BrainMorph model variants with 128, 256, and 512 keypoints. Fig. 9(a) illustrates that performance is not discernably correlated to increasing the number of keypoints. We hypothesize that as keypoints are generally in subcortical regions which are anatomically stable, increasing the number of correspondences does not provide further advantage beyond a certain point. Fig. 9(b) breaks it down across different transform types, from which we can observe that performance is relatively stable across affine and different TPS transformations. We further hypothesize that due to the locations of keypoints, increasing the degree of nonlinearity doesn’t significantly lead to improved performance.
7 Discussion
The results demonstrate that BrainMorph is a robust and flexible tool for brain MRI registration. On pairwise registration, BrainMorph is generally superior to baselines across all degrees of initial misalignment, and is state-of-the-art for affine and rigid transformations. These results hold consistently for for unimodal and multimodal registration, as well as skull-stripped and non-skull-stripped data. In addition, BrainMorph does not require extensive pre-processing like skullstripping and pre-affine registration. On longitudinal and groupwise registration, BrainMorph is superior to baseline registration algorithms, while being much more memory efficient and nearly 4 orders of magnitude faster.
The main limitation of BrainMorph is nonlinear performance at low initial misalignment and skull-stripped data, for which ANTs and SynthMorph perform excellently. For this reason, users who require good nonlinear registrations may consider using BrainMorph as a robust initial alignment tool, and further performing nonlinear registration using a tool like ANTs.
8 Conclusion
We presented a robust and flexible registration tool based on the KeyMorph framework, called BrainMorph, which is a deep learning-based image registration method that uses corresponding keypoints to derive the optimal transformation that align the images. This formulation enables interpretability, robustness to large initial misalignments, and flexibility/controllability of registrations at test-time. Training on a massive dataset of over 100,000 unique images from nearly 16,000 subjects enables our tool to work on raw data with minimal pre-processing. Empirically, we demonstrate fast and competitive performance across rigid, affine, nonlinear, and groupwise registration, particularly at large degrees of initial misalignment.
Acknowledgments
We thank Benjamin Billot and Juan Eugenio Iglesias for helpful discussions. Funding for this project was in part provided by the NIH grants R01AG053949, R01AG064027 and R01AG070988, and the NSF CAREER 1748377 grant.
Ethical Standards
The work follows appropriate ethical standards in conducting research and writing the manuscript, following all applicable laws and regulations regarding treatment of animals or human subjects.
Conflicts of Interest
We declare we do not have conflicts of interest.
Data availability
All data supporting the findings of the study are publicly available. All references to data are included in the Appendix.
